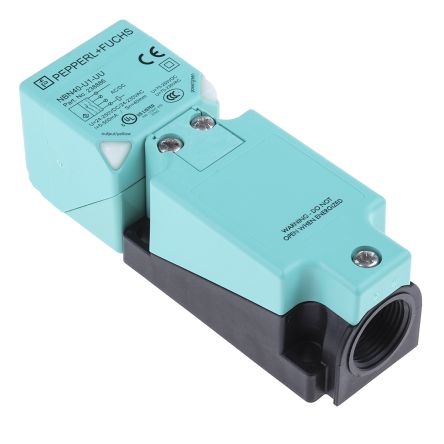

Pepperl + Fuchs NO/NC Inductive Sensor 118mm Length, 20 → 253 V ac, 20 → 300 V dc supply voltage [NBN40-U1-UU]; 124-0307
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Output Type | NO/NC |
| Detection Range | 40 mm |
| Terminal Type | M20 Gland |
| Supply Voltage | 20 → 253 V ac, 20 → 300 V dc |
| Length | 118mm |
| Width | 40mm |
| Depth | 40mm |
| Maximum AC Voltage | 253V |
| Maximum DC Voltage | 300V |
| Mounting Type | Non Flush |
| Switching Current | 5 → 500 mA |
| IP Rating | IP67 |
| Housing Material | Metal, Nylon 66 |
| Short Circuit Overload Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Maximum Switching Frequency | 100Hz |
| Standards Met | CCC, CE, CULus, EN 60947-5-2, IEC 60947-5-2 |
| Maximum Operating Temperature | +85°C |
| Reverse Polarity Protection | Yes |
| Shielding | Shielded |
