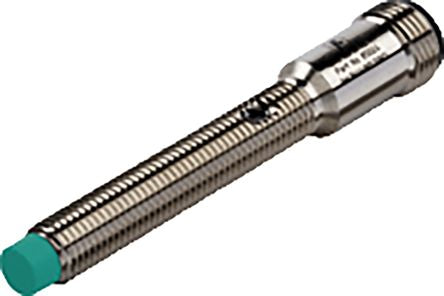

Pepperl + Fuchs, M8, PNP Inductive Sensor 66mm Length, 10 → 30 V dc supply voltage , IP67 Rating [NEN6-8GM45-E2-V1]; 184-8810
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M8 x 1 |
| Output Type | PNP-NO |
| Detection Range | 6 mm |
| Terminal Type | M12 - 4 Pin |
| Supply Voltage | 10 → 30 V dc |
| Length | 66mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Non Flush |
| Switching Current | 200 mA |
| IP Rating | IP67 |
| Housing Material | Brass |
| Short Circuit Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Maximum Switching Frequency | 750Hz |
| Maximum Operating Temperature | +85°C |
| Standards Met | CCC Certified, CCSAus Listed, CE Certified, CULus Listed, EN 60947-5-2, IEC 60947-5-2 |
