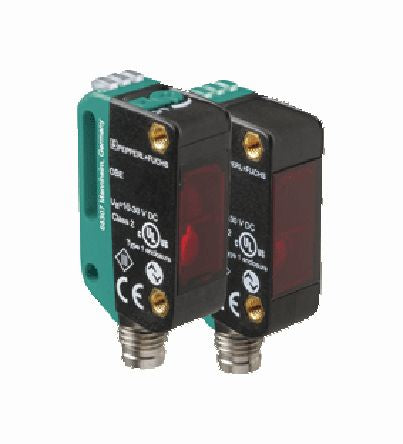

Pepperl + Fuchs Through Beam (Emitter and Receiver) Photoelectric Sensor 0 → 20 m Detection Range NPN-NO/NC, [OBE20M-R100-S2EP-IO-V31-L]; 124-0318
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Style | Block |
| Detection Type | Through Beam (Emitter and Receiver) |
| Detection Range | 0 → 20 m |
| Output Type | NPN/PNP |
| Electrical Connection | 4-Pin M8 Connector |
| Maximum DC Voltage | 30V |
| Communication Protocol | IO-LINK |
| Terminal Type | 4-Pin Connector |
| Light Source | Laser Light |
| IP Rating | IP67, IP69, IP69K |
| Maximum Current | 100 mA |
| Interface | IO-Link |
| Response Time | 0.4 ms |
| Housing Material | PC |
| Minimum Operating Temperature | -40°C |
| Standards Met | CE, CULus, E 87056, EN 60825-1:2007, EN 60947-5-2:2007, EN 61131-9:2013, FDA, IEC 60825-1:2007, IEC 60947-5-2:2007, IEC 61131-9:2013, UL 60947-5-2: 2014 |
| Maximum Operating Temperature | +60°C |
| Mounting Type | Panel Mount |
| Series | OBE20M |
