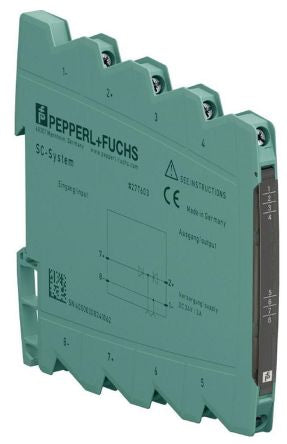

Pepperl + Fuchs SC-System, Temperature Converter Signal Conditioner, Analogue [S1SD-1TI-1U]; 134-8134
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Range | -1000 → +1000 mV, -100 → +100 mV, 0 → 5 (Resistor) kΩ, 0.2 → 50 (Potentiometer) kΩ, 200 (PTC) μA, 200 (RTD) μA |
| Output Range | 0 → 10 mA, 0 → 10 V, 0 → 20 mA, 0 → 5 V, 1 → 5 V, 2 → 10 mA, 2 → 10 V, 4 → 20 mA |
| Supply Voltage | 16.8 → 31.2 V dc |
| Mounting Type | DIN Rail |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
| Series | SC-System |
| Standards Met | CE, EN 61010-1:2010, EN 61326-1:2013, IEC 60529:2001 |
| Termination | Screw |
| Number of Channels | 1 |
| Operating Temperature Range | -25 → +70 °C |
