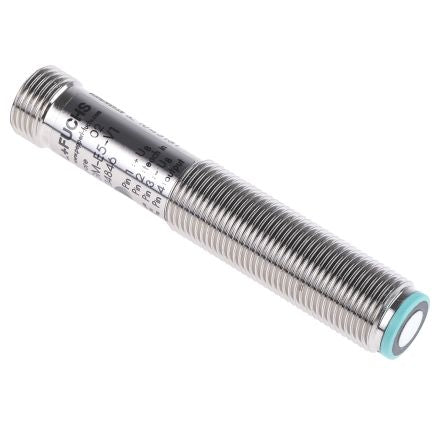

Pepperl + Fuchs Ultrasonic Sensor Barrel M12 x 1, 30 → 400 mm, PNP, 4-Pin M12 Connector IP67 [UB400-12GM-E5-V1]; 458-5533
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 30 → 400 mm |
| Output Type | PNP-NO |
| Body Style | Barrel |
| Thread Size | M12 x 1 |
| Transducer Frequency | 310kHz |
| Diameter | 12 mm |
| Maximum DC Voltage | 30V |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | M12 - 4 Pin |
| IP Rating | IP67 |
| Housing Material | Nickel Plated Brass |
| Short Circuit Overload Protection | Yes |
| Switching Current | 100 mA |
| Length | 70mm |
| Minimum Operating Temperature | -25°C |
| Switching Frequency | ≤8 Hz |
| Dimensions | 70 x 12 mm |
| Maximum Operating Temperature | +70°C |
