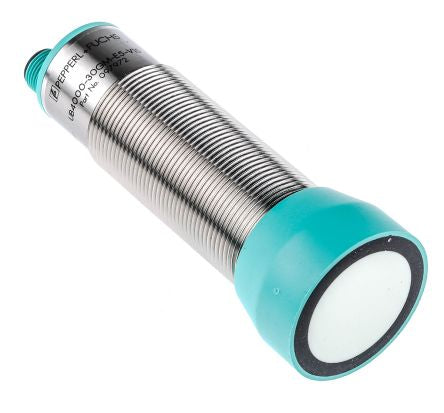

Pepperl + Fuchs Ultrasonic Sensor Barrel M30 x 1.5, 200 → 4000 mm, PNP, 5-Pin M12 Connector IP65 [UB4000-30GM-E5-V15]; 280-6686
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 200 → 4000 mm |
| Output Type | PNP-NO |
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Transducer Frequency | 85kHz |
| Diameter | 40 mm |
| Maximum DC Voltage | 30V |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | M12 - 5 Pin |
| IP Rating | IP65 |
| Housing Material | Nickel Plated Brass |
| Short Circuit Overload Protection | Yes |
| Maximum Operating Temperature | +70°C |
| Length | 108mm |
| Switching Current | 200 mA |
| Minimum Operating Temperature | -25°C |
| Switching Frequency | ≤1.5 Hz |
| Dimensions | 108 x 40 mm |
