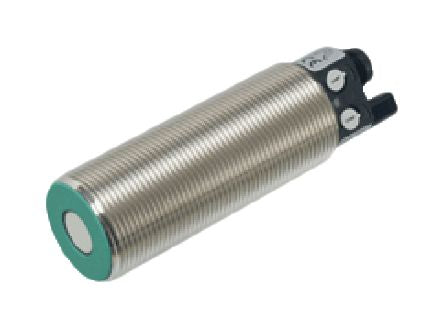

Pepperl + Fuchs Ultrasonic Sensor Barrel M30 x 1.5, 100 → 2000 mm, NO, PNP, 5-Pin M12 Connector IP65 [UC2000-30GM70-UE2R2-V15]; 891-9404
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 100 → 2000 mm |
| Output Type | Analogue, PNP-NO/NC |
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Transducer Frequency | 200kHz |
| Maximum DC Voltage | 30V |
| Supply Voltage | 20 → 30 V dc |
| Terminal Type | M12 - 5 Pin |
| IP Rating | IP65 |
| Housing Material | Nickel Plated Brass |
| Short Circuit Overload Protection | Yes |
| Response Time | ≤100 ms |
| Length | 88.8mm |
| Standards Met | CCC, CCSAus Listed, CE, CULus Listed, EN, IEC |
| Switching Frequency | ≤4 Hz |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -25°C |
| Switching Current | 300 mA |
