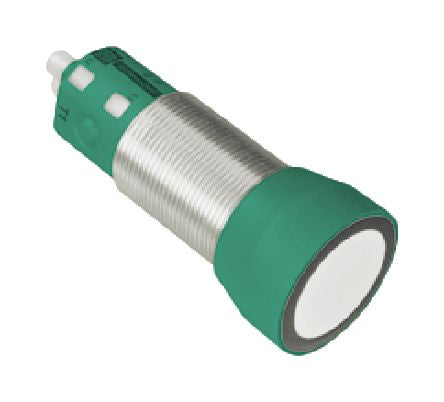

Pepperl + Fuchs Ultrasonic Sensor Barrel, 200 → 4000 mm, Push Pull, 5-Pin M12 Connector IO-Link IP67 [UC4000-30GM-2EP-IO-V15]; 891-9384
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 200 → 4000 mm |
| Output Type | Push Pull |
| Body Style | Barrel |
| Transducer Frequency | 85kHz |
| Diameter | 40 mm |
| Communication Protocol | IO-LINK |
| Maximum DC Voltage | 30V |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | M12 - 5 Pin |
| IP Rating | IP67 |
| Housing Material | Polyamide, Stainless Steel, TPU |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Response Time | ≤225 ms |
| Length | 86mm |
| Standards Met | CCC, CCSAus Listed, CE, CULus Listed, EN, IEC, IO-Link |
| Switching Frequency | ≤2 Hz |
| Maximum Operating Temperature | +70°C |
| Interface | IO-Link |
