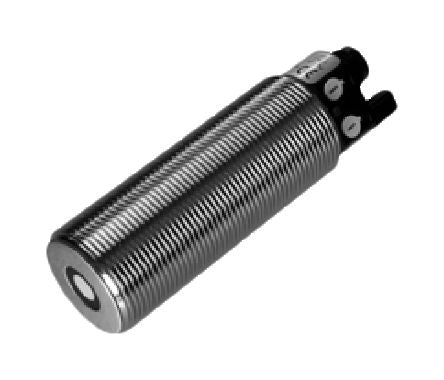

Pepperl + Fuchs Ultrasonic Sensor Barrel M30 x 1.5, 45 → 500 mm, NO, PNP, 5-Pin M12 Connector IP65 [UC500-30GM70-2E2R2-V15]; 891-9393
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 45 → 500 mm |
| Output Type | PNP-2NO/NC |
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Transducer Frequency | 300kHz |
| Maximum DC Voltage | 30V |
| Supply Voltage | 12 → 30 V dc |
| Terminal Type | M12 - 5 Pin |
| IP Rating | IP65 |
| Housing Material | Nickel Plated Brass |
| Short Circuit Overload Protection | Yes |
| Standards Met | CCC, CCSAus Listed, CE, CULus Listed, EN, IEC |
| Length | 88.8mm |
| Switching Frequency | ≤5 Hz |
| Response Time | ≤60 ms |
| Minimum Operating Temperature | -25°C |
| Switching Current | 150 mA |
| Maximum Operating Temperature | +70°C |
