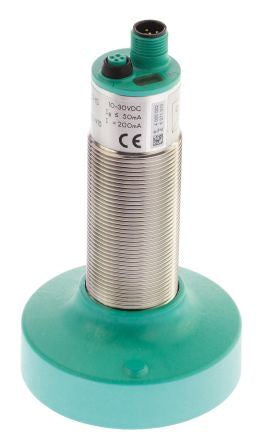

Pepperl + Fuchs Ultrasonic Sensor Barrel M30 x 1.5, 350 → 6000 mm, PNP, 5-Pin M12 Connector IP65 [UC6000-30GM-E6R2-V15]; 399-5490
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 350 → 6000 mm |
| Output Type | PNP-2NO/NC |
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Transducer Frequency | 65kHz |
| Diameter | 73 mm |
| Maximum DC Voltage | 30V |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | M12 - 5 Pin |
| IP Rating | IP65 |
| Housing Material | PBT |
| Short Circuit Overload Protection | Yes |
| Length | 139.5mm |
| Maximum Operating Temperature | +70°C |
| Switching Frequency | ≤7 Hz |
| Minimum Operating Temperature | -25°C |
| Dimensions | 139.5 x 73 mm |
| Switching Current | 200 mA |
