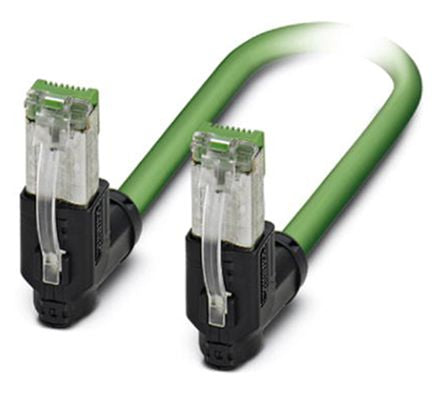

Phoenix Contact VS-PNRJ45R-PNRJ45R-93G-2.0 Series, RJ45 to RJ45 Cable assembly, 4 Core [1402509]; 883-0818
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connector A | Right Angle RJ45 |
| Connector B | Right Angle RJ45 |
| Length | 2m |
| Number of Cores | 4 |
| Connector A Number of Contacts | 8 |
| Connector B Number of Contacts | 8 |
| Sheath Colour | Green |
| Number of Strands | 7 |
| IP Rating | IP20 |
| Voltage Rating | 600 V |
| Cable Shape | Multicore |
| Cross Sectional Area | 0.34 mm² |
| Sheath Material | Polyurethane PUR |
| American Wire Gauge | 22 |
| Conductor Resistance | ≤120 Ω/km |
| Shielding | Shielded |
| Insulation Material | PE |
| Characteristic Impedance | 100 Ω |
| Outer Diameter | 6.5mm |
| Maximum Operating Temperature | +70°C |
| Size of Strands | 0.25 mm |
| Conductor Material | CuSn |
| Outer Sheath Material | PVC |
| Minimum Bend Radius | 3 x D (Fixed), 7 x D (Flexible) |
| Connector A Housing Gender | Plug |
| Connector B Housing Gender | Plug |
| Series | VS-PNRJ45R-PNRJ45R-93G-2.0 |
| Oil Resistant | Yes |
| Minimum Operating Temperature | -40°C |
| Standards Met | CSA FT 4, IEC 11801, UL 1581, UL 1685 |
