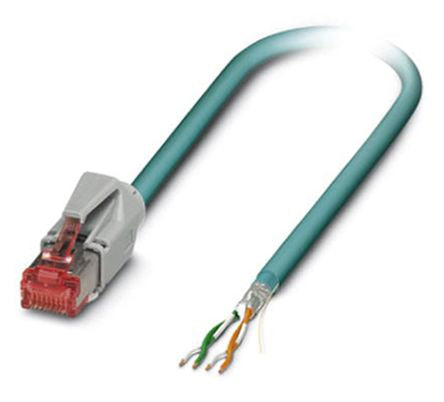

Phoenix Contact VS-IP20-OE-93E/0.5 Series, Straight RJ45 to Unterminated Cable assembly, 4 Core , 3m Cable [1404340]; 883-0903
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connector A | Straight RJ45 |
| Connector B | Unterminated |
| Length | 3m |
| Number of Cores | 4 |
| Connector A Number of Contacts | 4 |
| Sheath Colour | Black |
| Number of Strands | 7 |
| IP Rating | IP20 |
| Voltage Rating | ≤100 V |
| Cable Shape | Multicore |
| Cross Sectional Area | 0.14 mm² |
| Series | VS-IP20-OE-93E/0.5 |
| Connector A Housing Gender | Plug |
| Shielding | Unshielded |
| Insulation Material | Foamed PE |
| Minimum Operating Temperature | -40 (Fixed) °C, -20 (Flexible) °C |
| Standards Met | EN 60811-2-1, IEC 11801, IEC 11801:2002, IEC 60332-1-2, IEC 60754-1, UL |
| Oil Resistant | Yes |
| Minimum Bend Radius | 4 x D (Fixed), 8 x D (Flexible) |
| Outer Sheath Material | Polyurethane |
| Conductor Material | Copper |
| Size of Strands | 0.16 mm |
| Maximum Operating Temperature | +80°C |
| Outer Diameter | 6.4mm |
| Characteristic Impedance | 100 Ω |
| Sheath Material | Polyurethane PUR |
| American Wire Gauge | 26 |
| Conductor Resistance | 290 /km |
