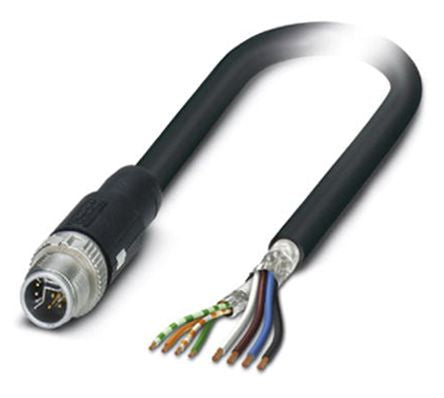

Phoenix Contact NBC-MSY/ 5.0-94H SCO Series, Straight M12 to Unterminated Cable assembly, 4 Core [1407489]; 883-1035
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connector A | Straight M12 |
| Connector B | Unterminated |
| Length | 5m |
| Number of Cores | 4 |
| Connector A Number of Contacts | 8 |
| Current Rating | 6 (Power) A, 500 (Data) mA |
| Sheath Colour | Black |
| Number of Strands | 19 |
| IP Rating | IP65, IP67 |
| Voltage Rating | 30 V |
| Cable Shape | Multicore |
| Cross Sectional Area | 0.25 mm² |
| Size of Strands | 0.1 (Signal) mm, 0.2 (Voltage Supply) mm |
| Connector A Housing Gender | Plug |
| Series | NBC-MSY/ 5.0-94H SCO |
| Conductor Resistance | 5 m |
| American Wire Gauge | 20 AWG, 26 AWG |
| Sheath Material | Polyurethane PUR |
| Characteristic Impedance | 100 Ω |
| Minimum Bend Radius | 10 x D |
| Outer Sheath Material | Polyurethane |
| Conductor Material | CuZn |
| Maximum Operating Temperature | +70 (Fiexible) °C, +90 (Fixed) °C |
| Outer Diameter | 7.6mm |
| Oil Resistant | Yes |
| Standards Met | IEC 11801, IEC 60754, IEC 60811-2-1, UL 1581, VDE 0282, VDE 0472 |
| Minimum Operating Temperature | -40 (Fixed) °C, -30 (Flexible) °C |
| Shielding | Unshielded |
| Insulation Material | PP |
