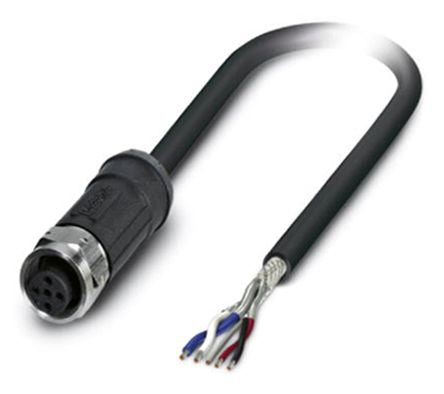

Phoenix Contact SAC-5P- 5.0-92X/M12FS SH OD Series, Straight M12 to Unterminated Cable assembly, 4 Core [1410494]; 883-1152
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connector A | Straight M12 |
| Connector B | Unterminated |
| Length | 5m |
| Number of Cores | 4 |
| Connector A Number of Contacts | 5 |
| Current Rating | 0.166666666666667 |
| Sheath Colour | Black |
| Number of Strands | 19 |
| IP Rating | IP65, IP67, IP68, IP69K |
| Voltage Rating | 60 V |
| Cable Shape | Multicore |
| Cross Sectional Area | 0.25 (Signal) mm², 0.34 (Power) mm², 0.38 (Drain Wire) mm² |
| Maximum Operating Temperature | +105°C |
| Series | SAC-5P- 5.0-92X/M12FS SH OD |
| Outer Diameter | 6.9mm |
| Characteristic Impedance | 120 Ω |
| Sheath Material | Flame Retardant Non-Corrosive FRNC |
| American Wire Gauge | 22 AWG, 24 AWG |
| Conductor Resistance | 55 (Power) Ω/km, 90 (Signal) Ω/km |
| Shielding | Shielded |
| Insulation Material | PE |
| Minimum Operating Temperature | -40°C |
| Standards Met | IEC 60332-3-25, IEC 60512-11-4, IEC 61076-2-101 |
| Oil Resistant | Yes |
| Connector A Housing Gender | Socket |
| Minimum Bend Radius | 5 x D (Fixed), 10 x D (Flexible) |
| Outer Sheath Material | FRNC |
| Conductor Material | CuSn |
| Size of Strands | 0.13 (Signal) mm, 0.16 (Voltage Supply) mm |
