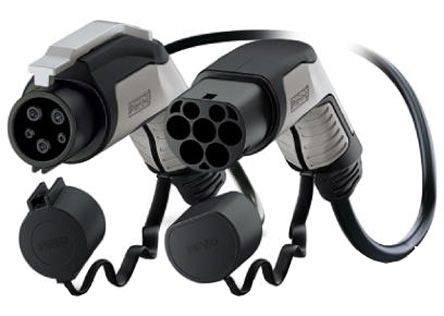

Phoenix Contact EV-TAG3PK-1AC20A-4.0M2.5ESBK01 Series, EV Type 1 Electric vehicle connector Plug to Socket [1623908]; 124-5212
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | EV-TAG3PK-1AC20A-4.0M2.5ESBK01 |
| Connector Type | EV Type 1 |
| Number of Contacts | 5 |
| Wire Size | 1 x 0.5 mm², 3 x 2.5 mm² |
| Current Rating | 2 (Signal Contact) A, 20 (Power Contact) A |
| Operating Voltage | 30 (Signal Contact) V ac, 250 (Power Contact) V ac |
| Connector Gender | Male to Female |
| Contact Gender | Female, Male |
| Key Type | U |
| Latching Type | Lever Actuated |
| Height | 131.8 (Plug) mm, 151.1 (Vehicle Connector) mm |
| Termination Method | Plug In |
| Cable Length | 4m |
| Depth | 233.4 (Plug) mm, 236.1 (Vehicle Connector) mm |
| Contact Resistance | 480 (Lever Actuated) Ω |
| Minimum Operating Temperature | -30°C |
| Orientation | Right Angle |
| Colour | Black |
| Applications | Type 2 to Type 1 Electric Vehicle Charging |
| Contact Plating | Silver |
| Maximum Operating Temperature | 50°C |
| IP Rating | IP44, IP56 |
| For Use With | E-Mobility Charging Station (EVSE) |
| Mounting Type | Cable Mount |
| Standards Met | IEC 62196-2, SAE J1772 |
| Width | 58mm |
