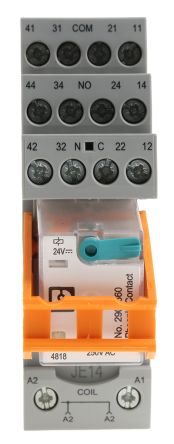

Phoenix Contact RIF 2 Series 24V dc DIN Rail Interface Relay Module, DPDT, Screw [2903326]; 175-0528
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24V dc |
| Maximum Input Voltage | 24V dc |
| Contact Configuration | DPDT |
| Switching Current | 5 mA |
| Mounting Type | DIN Rail |
| Switching Voltage | 250V ac/dc |
| Terminal Type | Screw |
| Length | 27mm |
| Series | RIF-2-RSC-LDP-24DC/2X21 |
| Depth | 75mm |
| Height | 89mm |
| Dimensions | 27 x 75 x 89mm |
| Contact Material | Silver Alloy |
| Input Current | 42mA |
| Number of Poles | 2 |
| Operating Temperature Range | -40 → +60°C |
| Special Features | IP20 Relay Base |
| Standards Met | DIN EN 50178, UL 94 |
| Relay Switching Classification | Pre-Assembled Relay Module |
| Life | 2 x 10^7 (Mechanical) cycles |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +60°C |
