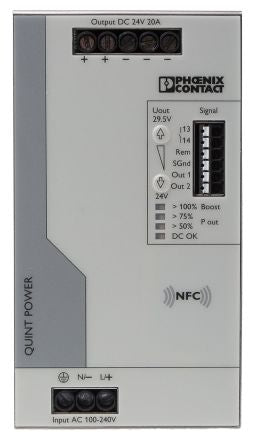

Phoenix Contact, QUINT4-PS/1AC/24DC/20 PSU, 24V dc Output Voltage, 20A Output Current [2904602]; 123-4307
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 100V ac → 240V ac / 110V dc → 250V dc |
| Output Voltage | 24 V dc |
| Output Current | 20 A |
| Power Rating | 480W |
| Number of Outputs | 1 |
| Type | Switched Mode |
| Height | 130mm |
| Width | 70mm |
| Mounting Type | DIN Rail Mount |
| Special Features | Easy System Extension, High Degree of Immunity, Preventive Function Monitoring Indicates Critical Operating States Before Errors Occur, SFB Technology Trips Standard Circuit Breakers Selectively |
| Series | QUINT4-PS/1AC/24DC/20 |
| Standards Met | CUL, CULus, DNV GL, EAC, PRS, UL |
| Maximum Temperature | +70°C |
| Hazardous Area Certification | Ex Approval |
| Depth | 125mm |
| Minimum Temperature | -25°C |
| Efficiency | 0.94 |
| Ripple And Noise | <50mV Pk-Pk |
| MTBF | >1110000h |
