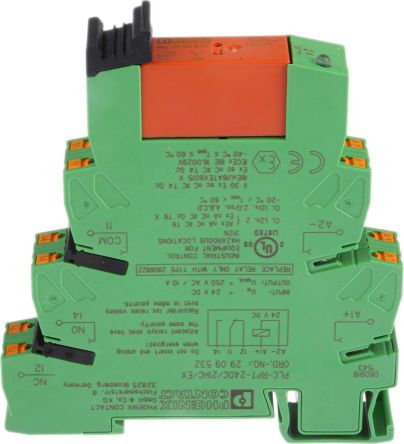

Phoenix Contact PLC-RPT Series 24V dc DIN Rail Interface Relay Module, SPDT, Push In [2909532]; 175-0504
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24V dc |
| Maximum Input Voltage | 24V dc |
| Switching Current | 10 mA |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Switching Voltage | 250V ac/dc |
| Terminal Type | Push In |
| Length | 14mm |
| Depth | 94mm |
| Series | PLC-RPT-24DC/21HC/EX |
| Height | 80mm |
| Dimensions | 14 x 94 x 80mm |
| Contact Material | Silver Alloy |
| Input Current | 18mA |
| Minimum Operating Temperature | -40 °C, -20 °C |
| Maximum Operating Temperature | +60°C |
| Life | 3 x 10^7 (Mechanical) cycles |
| Operating Temperature Range | -40 → +60 °C, -20 → +60 °C |
| Special Features | IP20 Relay Base, Reinforced Insulation, Safe Isolation |
| Standards Met | -15, -7, CE Compliant, EN 50178, EN 60079-0, IEC 60664, UL Listed, USA Certified |
| Relay Switching Classification | Interface Relay Module |
| Number of Poles | 1 |
