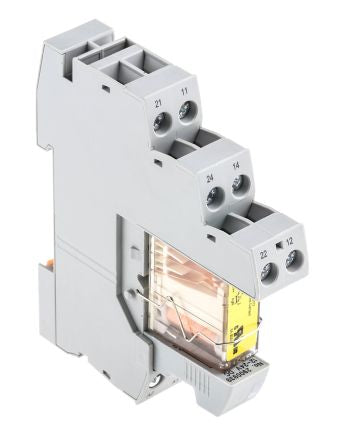

Phoenix Contact RIF 1 Series 24V dc DIN Rail Interface Relay Module, DPDT, Screw [2909848]; 175-0524
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24V dc |
| Maximum Input Voltage | 24V dc |
| Switching Current | 10 mA |
| Contact Configuration | DPDT |
| Mounting Type | DIN Rail |
| Switching Voltage | 250V ac/dc |
| Terminal Type | Screw |
| Length | 16mm |
| Series | RIF-1-RSC-LDP-24DC/2X21/FG |
| Depth | 75mm |
| Height | 89mm |
| Dimensions | 16 x 75 x 89mm |
| Contact Material | Silver Alloy |
| Input Current | 30mA |
| Life | 10^7 (Mechanical) cycles |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +50°C |
| Operating Temperature Range | -20 → +50°C |
| Special Features | IP20 Relay Base, Safe Isolation |
| Number of Poles | 2 |
| Relay Switching Classification | Pre-Assembled Relay Module |
| Standards Met | DIN EN 50178/VDE 0160, EN 50205, UL 94 |
