| THÔNG SỐ KỸ THUẬT |
|---|
| Manufacturer |

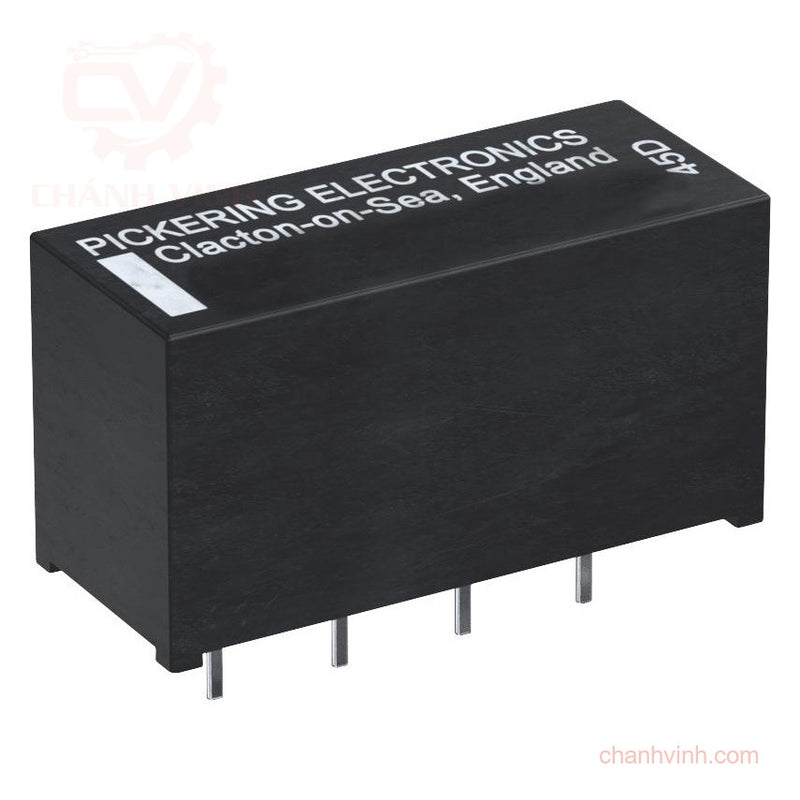

Pickering Electronics |
| Manufacturer Part No. |
100-1-A-5/4D |
| Type of relay |
reed switch |
| Contacts configuration |
SPST-NO |
| Rated coil voltage |
5V DC |
| Contact current max. |
1.2A |
| Switched voltage |
max. 500V DC |
| Switching capacity |
10W |
| Coil resistance |
2.2kΩ |
| Mounting |
THT |
| Manufacturer series |
100 |
| Contact resistance |
0.15Ω |
| Operating temperature |
-20...85°C |
| Operate time |
1.75ms |
| Release time |
1.75ms |
| Switched current |
0.5A |
| Min. insulation resistance |
1TΩ |
| Breakdown voltage |
1kV |
| Body dimensions |
24.1x12.7x10.2mm |
| Terminal pitch |
5.1mm |
| Optional equipment |
diode |
| Electrical life |
100000000 cycles |
| Gross weight |
7.1 g |
Tài liệu: Documentation EN
Giá: Liên hệ – gửi mã và số lượng về [email protected] để nhận báo giá nhanh.
