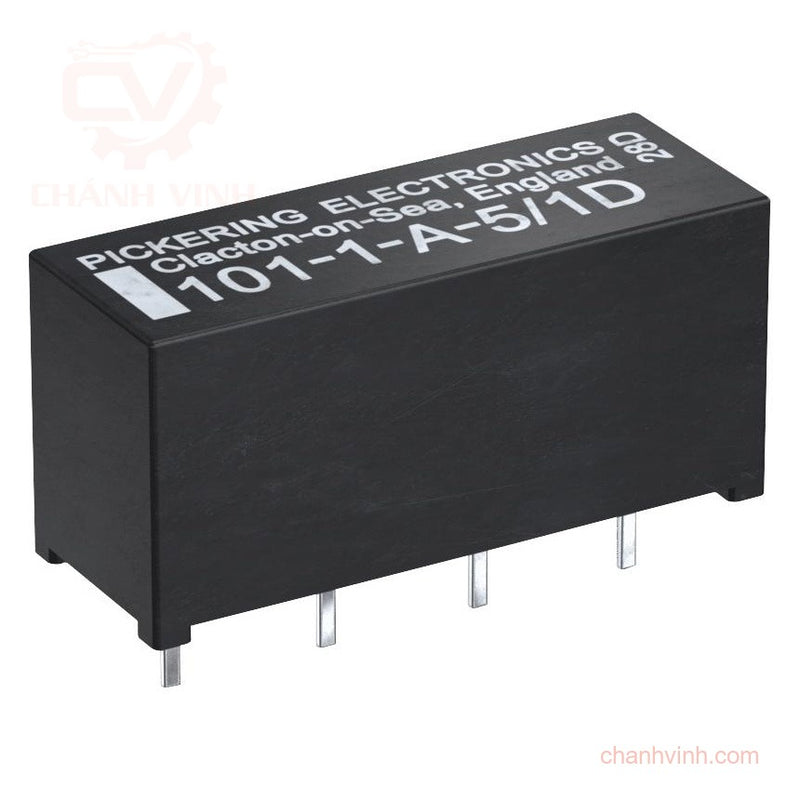

| THÔNG SỐ KỸ THUẬT |
|---|
| Manufacturer |
Pickering Electronics |
| Manufacturer Part No. |
101-1-A-5/17D |
| Type of relay |
reed switch |
| Contacts configuration |
SPST-NO |
| Rated coil voltage |
5V DC |
| Contact current max. |
1.2A |
| Switched voltage |
max. 200V DC |
| Switching capacity |
10W |
| Coil resistance |
3kΩ |
| Mounting |
THT |
| Manufacturer series |
101 |
| Contact resistance |
120mΩ |
| Operating temperature |
-20...85°C |
| Operate time |
1ms |
| Release time |
750µs |
| Switched current |
0.5A |
| Min. insulation resistance |
1TΩ |
| Breakdown voltage |
240V |
| Body dimensions |
20.1x9.4x7.4mm |
| Terminal pitch |
5.1mm |
| Optional equipment |
diode |
| Electrical life |
1000000000 cycles |
| Gross weight |
2.9 g |
Tài liệu: Documentation EN
Giá: Liên hệ – gửi mã và số lượng về [email protected] để nhận báo giá nhanh.
