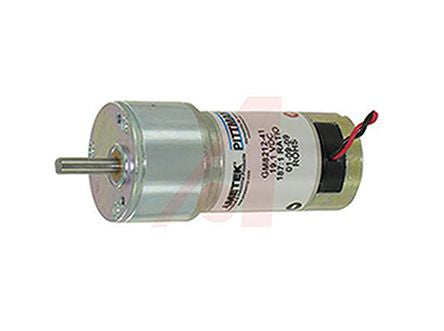

PITTMAN AMETEK TIP, 24 V dc, 16 oz-in, Brushed DC Geared Motor, Output Speed 739 rpm [GM8224S010]; 921-3781
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Speed | 739 rpm |
| Supply Voltage | 24 V dc |
| Maximum Output Torque | 16 oz-in |
| DC Motor Type | Brushed |
| Shaft Diameter | 4.76mm |
| Power Rating | 3.7 W |
| Gearhead Type | Spur |
| Length | 83.44mm |
| Width | 34.8 (Dia.)mm |
| Dimensions | 83.44 x 34.8 (Dia.) mm |
| Current Rating | 140 mA |
| Gear Ratio | 6.3:1 |
| Shaft Angle | Straight |
| Standards Met | RoHS |
| Series | GM 8000 |
