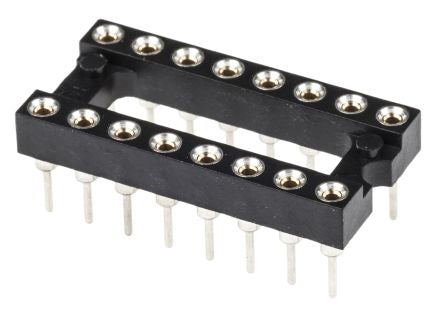

Preci-Dip 2.54mm Pitch Vertical 16 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 1A [110-87-316-41-001101]; 702-0688
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 16 |
| Mounting Type | Through Hole |
| Pin Type | Turned |
| Pitch | 2.54mm |
| Row Width | 7.62mm |
| Frame Type | Open Frame |
| Termination Method | Solder |
| Contact Plating | Gold, Tin |
| Current Rating | 1A |
| Orientation | Vertical |
| Length | 20.3mm |
| Width | 10.1mm |
| Depth | 2.8mm |
| Dimensions | 20.3 x 10.1 x 2.8mm |
| Contact Material | Beryllium Copper, Brass |
| Housing Material | Glass Fibre Reinforced PET |
| Maximum Operating Temperature | +125°C |
| Voltage Rating | 100 V ac, 150 V dc |
| Minimum Operating Temperature | -55°C |
