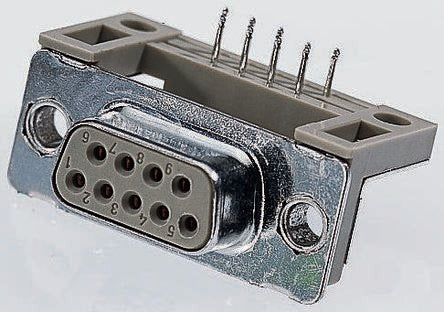

ERNI TMC Series, 9 Way Right Angle Through Hole PCB D-sub Connector Socket, 2.84mm Pitch, with Guide Frame, M3 inserts [003600]; 170-6801
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 9 |
| Gender | Female |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Pitch | 2.84mm |
| Mounting Hardware | Guide Frame, M3 inserts |
| Termination Method | Solder |
| Current Rating | 5.0A |
| Housing Material | PBT |
| Voltage Rating | 1.25 kV |
| Length | 30.8mm |
| Width | 11.0mm |
| Depth | 12.5mm |
| Dimensions | 30.8 x 11 x 12.5mm |
| Minimum Operating Temperature | -65.0°C |
| Series | TMC |
| Contact Plating | Gold |
| Maximum Operating Temperature | +125°C |
| Series Number | 3 |
