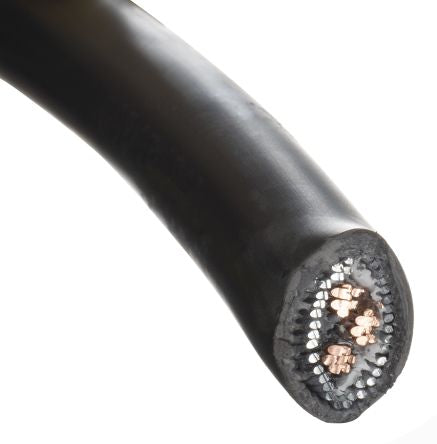

Prysmian 3 Core Black Armoured Cable With Low Smoke Zero Halogen (LSZH) Sheath , SWA Galvanised Steel Wire, 56 A [20301536]; 494-5799
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 3 |
| Cross Sectional Area | 6 mm² |
| Current Rating | 56 A |
| Reel Length | 50m |
| Sheath Material | Low Smoke Zero Halogen (LSZH) |
| Voltage Rating | 1 kV |
| Outer Diameter | 15.2mm |
| Armour Construction | Galvanised Steel Wire |
| Insulation Material | PEX |
| Minimum Bend Radius | 6 x D |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +90°C |
| Conductor Material | Annealed Copper |
| Conductor Strand Type | Stranded |
| Conductor Resistance | 3.08 Ω/km |
| Sheath Colour | Black |
| Cable Shape | Multicore |
