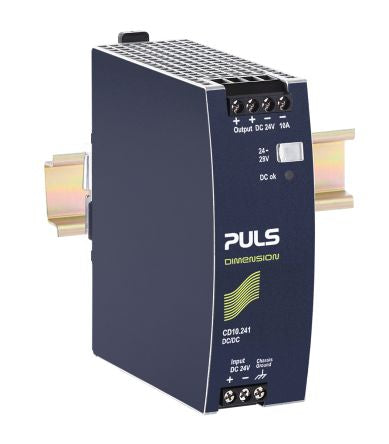

PULS CD 240W Isolated DC-DC Converter DIN Rail Mount, Voltage in 18 → 35 V dc, Voltage out 24V dc [CD10.241]; 181-2486
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 24V dc |
| Input Voltage Range | 18 → 35 V dc |
| Power Rating | 240W |
| Output Current | 10A |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 1.5kV dc |
| Mounting Type | DIN Rail Mount |
| Number of Outputs | 1 |
| Efficiency | 0.942 |
| Minimum Temperature | -25°C |
| Load Regulation | 100mV |
| Maximum Temperature | +70°C |
| Width | 117mm |
| Series | CD |
| Standards Met | ANSI/UL 61010-2-201, ATEX EN 60079-0, ATEX EN 60079-7, CE Certified, CULus Listed, GL Listed, IECEE IEC 61010-2-201, IECEx IEC 60079-0, IECEx IEC 60079-7, UL 508 |
| Depth | 124mm |
| Length | 42mm |
