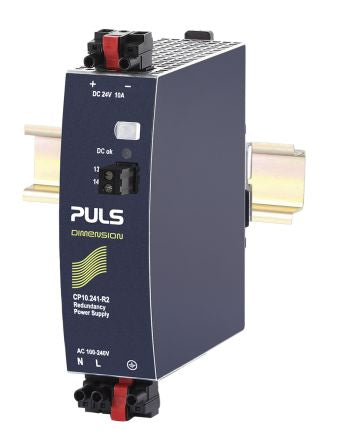

PULS, CP DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 10A Output Current [CP10.241-R2]; 168-2939
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac, Dc |
| AC or DC Output Voltage | Dc |
| Input Voltage | 100 → 240V ac |
| Output Voltage | 24 V dc |
| Output Current | 0.416666666666667 |
| Power Rating | 240W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Redundancy Module |
| Height | 124mm |
| Width | 39mm |
| Mounting Type | DIN Rail Mount |
| Depth | 117mm |
| Load Regulation | 1000mV |
| Standards Met | ATEX, CE Certified, CSA Certified, CULus Listed, GL, IECEx, UL 508, UL 60950-1 |
| Ripple And Noise | 50mV Pk-Pk |
| Maximum Temperature | +70°C |
| Hazardous Area Certification | ATEX, IECEx |
| Output Voltage Adjustment Range | 24 → 30V |
| Series | CP |
| Minimum Temperature | -25°C |
| Special Features | Active Power Factor Correction (PFC), Built-in Decoupling Mosfet for 1+1 and n+1 Redundancy, Current Sharing Feature Included, DC-OK Relay Contact, Easy Fuse Breaking 3 Times Nominal Current for 12ms, Full Power Between -25°C and +60°C, Minimal Inrush Current Surge, Output Power Reserves, Safe HiccupPLUS Overload Mode |
