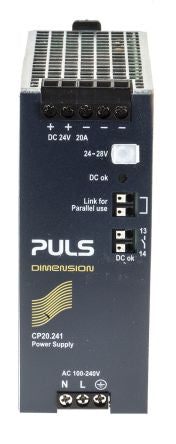

PULS, CP DIN Rail Power Supply, 24V dc Output Voltage, 20A Output Current [CP20.241]; 165-1372
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Output Voltage | Dc |
| Input Voltage | 230V ac |
| Output Voltage | 24 V dc |
| Output Current | 20 A |
| Power Rating | 480W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 124mm |
| Width | 48mm |
| Depth | 127mm |
| Mounting Type | DIN Rail Mount |
| Minimum Temperature | -25°C |
| Hazardous Area Certification | ATEX, IECEx |
| Standards Met | ATEX, CE, CSA, CULus Listed, CULus Recognized, GL, IECEx, UL 508, UL 60950-1 |
| Series | CP |
| Ripple And Noise | 50mV Pk-Pk |
| Output Voltage Adjustment Range | 24 → 28V |
| Special Features | Active Power Factor Correction, Excellent Partial Load Efficiency, Output Power Reserves, Safe Hiccup PLUS, Wide Range of Input 100 to 240 V ac |
| Load Regulation | 100 mV, 1000 mV |
| Maximum Temperature | +70°C |
| MTBF | 1060000h |
