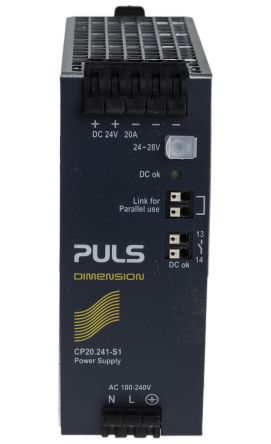

PULS, CP DIN Rail Power Supply, 24V dc Output Voltage, 20A Output Current [CP20.241-S1]; 181-2492
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac, Dc |
| AC or DC Output Voltage | Dc |
| Input Voltage | 100 → 240V ac |
| Output Voltage | 24 V dc |
| Output Current | 20 A |
| Power Rating | 480W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Power Supply |
| Height | 124mm |
| Width | 48mm |
| Load Regulation | 100mV |
| Output Voltage Adjustment Range | 24 → 28V |
| MTBF | 100h |
| Ripple And Noise | 50mV Pk-Pk |
| Efficiency | 0.956 |
| Depth | 127mm |
| Mounting Type | DIN Rail Mount |
| Maximum Temperature | +70°C |
| Special Features | Active Power Factor Correction (PFC) |
| Minimum Temperature | -25°C |
| Hazardous Area Certification | ATEX, IECEx |
| Standards Met | ATEX EN 60079-0, ATEX EN 60079-7, CE Certified, CULus Listed, IECEE IEC 60950-1, IECEx IEC 60079-0, IECEx IEC 60079-7, UL 508, UL 60950-1 |
| Series | CP |
