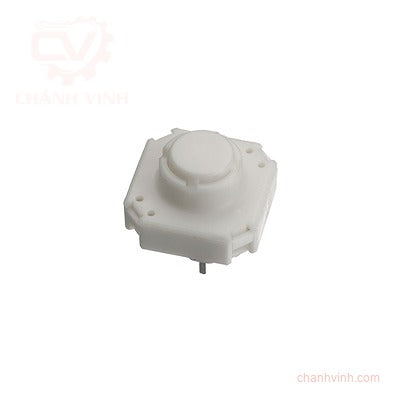

RAFI Silver Tactile Switch, 1NO 250mA 9mm Panel Mount [3.14.100.506/0000]; 525-581

The RAFI tactile switches have a 15 x 15 mm edge length, reliable silver contacts and a noticeable click. They are used in flat data entry keyboards under overlays or under keycaps, such as RAFI RK 90 keycaps. The round pressure pad of the RF 15 R requires round cut-outs in the front panel. These enable a narrow keyboard grid of just 15.24 mm with sufficiently large adhesive strips between the individual key switches. The overlay, which we recommend embossing above the key switches, can be glued onto these strips of glue.

Silver contacts reliable switching with medium currents

Optional spot illumination

Round plunger key switch shape

Round cut-outs in the front panel

Narrow key grid of 15.24mm possible

Overall height 9.7mm or 12.5mm

Terminal technology THT
