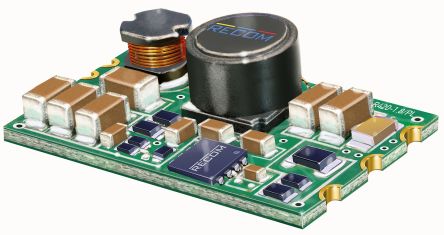

Non-Isolated DC-DC Converter, 5V dc Output, 10mA [R420-1.8/PL]; 166-8961
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage Range | 10 → 36 V dc |
| Input Voltage Nominal | 24 V dc |
| Output Voltage | 5V dc |
| Output Current | 10mA |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Length | 22.7mm |
| Width | 13.2mm |
| Depth | 5.08mm |
| Efficiency | 0.76 |
| Minimum Temperature | -40°C |
| Maximum Temperature | +105°C |
| Ripple And Noise | 30mV Pk-Pk |
| Standards Met | EN55022, EN60950-1, REACH Compliant |
| Weight | 2.2g |
| Series | R420 |
| Protection Features | Short Circuit Protection |
| Load Regulation | 0.008 |
| Application | Indoor Solar Powered Circuit |
| Special Features | Continuous Short Circuit Protection, Designed for 4 - 20 mA Loop Operation and Energy Scavenging Applications, No minimum Load required, Open Frame SMD Design, 5000 m Operating Altitude |
| Line Regulation | 0.005 |
| Maximum Input Current | <3.6mA |
| Regulator Type | Linear Power Supply |
| MTBF | 7395000h |
| Power Signal Conversion Type | DC-DC |
