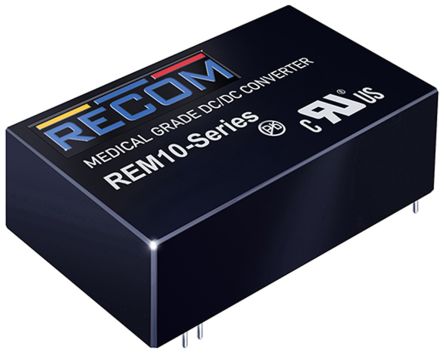

Recom REM10 10W Isolated DC-DC Converter Through Hole, Voltage in 5.5 → 9 V dc, Voltage out 5V dc [REM10-0505S/A]; 166-6519
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5V dc |
| Output Voltage Adjustment Range | ±10% |
| Input Voltage Range | 5.5 → 9 V dc |
| Input Voltage Nominal | 5 V dc |
| Isolation Voltage | 5kV ac |
| Power Rating | 10W |
| Output Current | 2A |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 84 %, 85.5 %, 86.5 % |
| Package | DIP 24 |
| Load Regulation | ±0.2% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +105°C |
| Standards Met | ANSI/AAMI ES60601-1 Standard, ANSI/AAMI File Number E314885-A30, CAN/CSA Medical C22.2 No. 60601-1:08 Standard, CAN/CSA Medical File Number E314889, CB Medical File Number E314885-A30, CB Medical IEC-60601-1 Standard, CE Certified, Conducted Immunity EN61 |
| Width | 20.3mm |
| Length | 31.8mm |
| Series | REM10 |
| Depth | 10.4mm |
