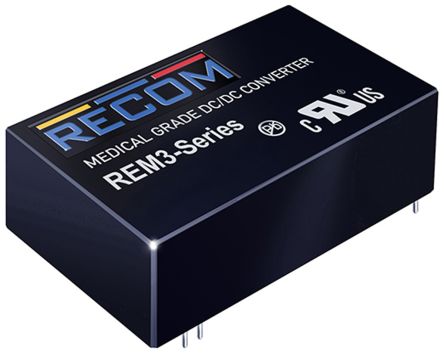

Recom REM3 3W Isolated DC-DC Converter Through Hole, Voltage in 5.5 → 9 V dc, Voltage out ±12V dc Medical [REM3-0512D/A]; 879-3612
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±12V dc |
| Output Voltage Adjustment Range | ±10.8 V dc, ±13.2 V dc |
| Input Voltage Range | 5.5 → 9 V dc |
| Input Voltage Nominal | 5 V dc |
| Isolation Voltage | 5kV ac |
| Power Rating | 3W |
| Output Current | ±125mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Medical Approved | Yes |
| Package | DIP 24 |
| Load Regulation | ±1% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +105°C |
| Length | 31.8mm |
| Series | REM3 |
| Standards Met | ANSI/AAMI ES60601-1 Standard, ANSI/AAMI File Number E314885-A10, CAN/CSA Medical C22.2 No. 60601-1:08 Standard, CAN/CSA Medical File Number E314889, CB Medical File Number E314885-A10, CB Medical IEC-60601-1 Standard, CE Certified, Conducted Immunity EN61 |
| Depth | 10.4mm |
| Width | 20.3mm |
