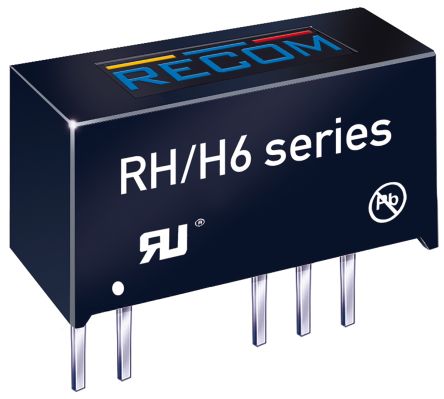

Recom RH 1W Isolated DC-DC Converter Through Hole, Voltage out ±15V dc [RH-1515D/H6]; 166-6592
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±15V dc |
| Output Voltage Adjustment Range | ±14.25 V dc, ±15.75 V dc |
| Input Voltage Range | ±13.5 V dc, ±16.5 V dc |
| Input Voltage Nominal | ±15 V dc |
| Isolation Voltage | 4kV dc |
| Power Rating | 1W |
| Output Current | ±33mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Efficiency | 78 → 80% |
| Package | SIP 7 |
| Minimum Temperature | -40°C |
| Load Regulation | 0.1 |
| Maximum Temperature | +90°C |
| Standards Met | A12:2011, E-358085, EN 60950-1, EN 60950-1:2006, IEC/EN 60601-1 Certified, IEC/EN 60601-1: 2006, UL 60950-1, UL 94 V-0, UL60950 |
| Depth | 10.2mm |
| Series | RH |
| Length | 19.65mm |
| Width | 7.05mm |
