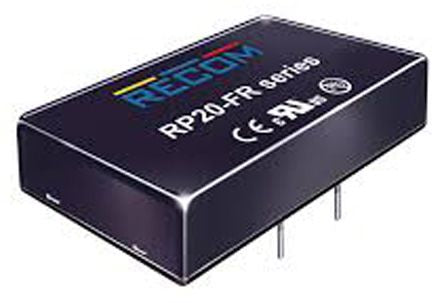

Recom RP20 FR 20W Isolated DC-DC Converter Through Hole, Voltage in 43 → 160 V dc, Voltage out 12V dc Railway [RP20-11012SFR/P]; 122-8234
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 12V dc |
| Output Voltage Adjustment Range | ±10% |
| Input Voltage Range | 43 → 160 V dc |
| Input Voltage Nominal | 110 V dc |
| Isolation Voltage | 1.6kV dc |
| Power Rating | 20W |
| Output Current | 1.67A |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Railway Approved | Yes |
| Load Regulation | ±0.1 (10 → 90% Load) %, ±0.2 (0 → 100% Load) % |
| Minimum Temperature | -40°C |
| Maximum Temperature | +79 °C, +101 °C |
| Length | 50.8mm |
| Standards Met | CE, CSA C22.2, CUL 60950-1, CULus Recognized E196683, EN 61373, EN50155, EN55011, EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, MIL-HDBK-217F, MIL-STD-810F, UL 60950-1, UL 94 V-0 |
| Series | RP20 FR |
| Depth | 10.2mm |
| Width | 25.4mm |
