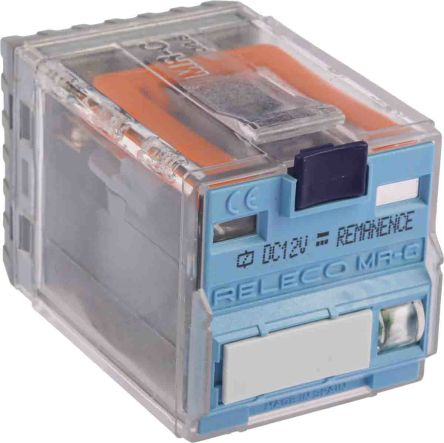

DPDT Plug In Latching Relay 10 A, 12V dc For Use In Power Applications [C3-R20 / DC 12 V]; 350-377
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 12 V dc |
| Contact Configuration | DPDT |
| Mounting Type | Plug In |
| Switching Current | 0.416666666666667 |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 30V dc |
| Series | C3-R20 |
| Length | 35mm |
| Depth | 35mm |
| Height | 66mm |
| Dimensions | 35 x 66 x 35mm |
| Terminal Type | Through Hole |
| Application | Power |
| Coil Power | 1.5W |
| Coil Resistance | 125 Ω |
| Isolation Coil To Contact | 2.5kV |
| Life | 10 Million (AC Mechanical) cycles, 20 Million (DC Mechanical) cycles |
| Contact Material | Silver Alloy |
| Maximum Switching Power AC | 2.5 kVA |
| Operating Temperature Range | -40 → +60°C |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +60°C |
