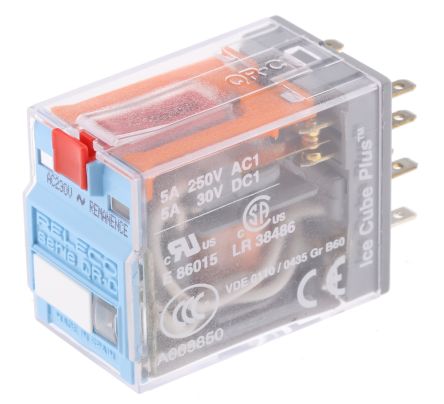

DPDT Plug In Latching Relay 5 A, 230V ac For Use In Power Applications [C9R21N230A]; 213-0838
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 230 V ac |
| Contact Configuration | DPDT |
| Mounting Type | Plug In |
| Switching Current | 0.208333333333333 |
| Maximum Switching Voltage AC | 120V ac |
| Maximum Switching Voltage DC | 30V dc |
| Length | 28mm |
| Depth | 21mm |
| Height | 37.5mm |
| Dimensions | 28 x 37.5 x 21mm |
| Terminal Type | Through Hole |
| Application | Power |
| Coil Power | 1.2W |
| Features | LED Indicator, Test Button |
| Life | 10 Million (AC Mechanical) cycles, 20 Million (DC Mechanical) cycles |
| Isolation Coil To Contact | 2kV |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +60°C |
| Contact Material | Gold Plated |
| Operating Temperature Range | -40 → +60°C |
| Maximum Switching Power AC | 600 kVA |
