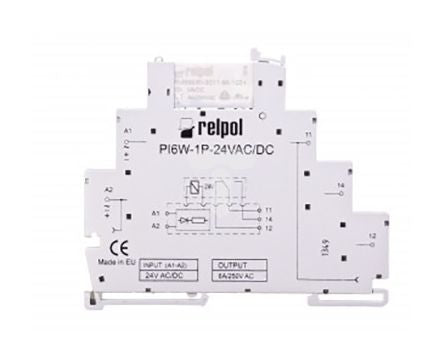

Relpol PIR6W Series 24V ac/dc DIN Rail Interface Relay Module, SPDT, Screw [PIR6W-1P-24VAC/DC]; 914-3926
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24V ac/dc |
| Contact Configuration | SPDT |
| Switching Current | 0.25 |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Length | 98.5mm |
| Series | PIR6W |
| Depth | 6.2mm |
| Height | 85.5mm |
| Dimensions | 98.5 x 6.2 x 85.5mm |
| Contact Material | Silver Alloy |
| Turn Off Time | 18ms |
| Operating Temperature Range | -40 → +60°C |
| Turn On Time | 20ms |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 60°C |
| Standards Met | CE, CULus, DVE, EAC |
| Control Resistance | ≤100mΩ |
| Relay Switching Classification | Interface Relay |
| Number of Poles | 1 |
