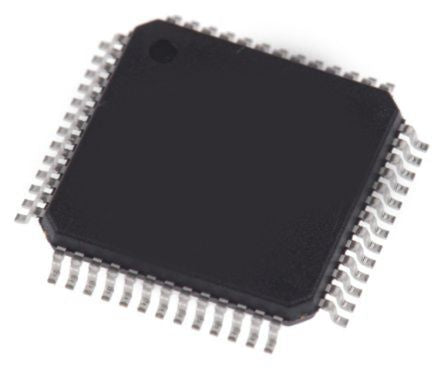

Renesas Electronics R5F100JEAFA, 16bit RL78 Microcontroller, 32MHz, 64 kB Flash, 52-Pin LQFP [R5F100JEAFA]; 177-5024
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | RL78/G13 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 52 |
| Device Core | RL78 |
| Data Bus Width | 16bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 4 kB |
| ADC Channels | 12 |
| Number of SPI Channels | 5 |
| Typical Operating Supply Voltage | 1.6 → 5.5 V |
| Length | 10mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | CISC Harvard |
| Minimum Operating Temperature | -40 °C |
| ADCs | 1(12 x 10 bit) |
| ADC Resolution | 10bit |
| Timer Resolution | 12 bit, 16 bit |
| Width | 10mm |
| Number of LIN Channels | 1 |
| Height | 1.4mm |
| Number of I2C Channels | 5 |
| Number of Timers | 4 |
| Number of UART Channels | 3 |
| Program Memory Type | Flash |
| Dimensions | 10 x 10 x 1.4mm |
| Timers | 1 x 12 bit, 2(1 Channel), 8 x 16 bit |
