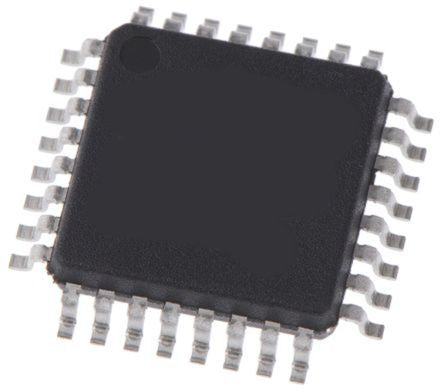

Renesas Electronics R5F104BAAFP#V0, 16bit RL78/G14 Microcontroller, 32MHz, 16 kB, 4 kB Flash, ROM, 32-Pin LQFP [R5F104BAAFP#V0]; 768-2479
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | RL78 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | RL78/G14 |
| Data Bus Width | 16bit |
| Program Memory Size | 4 kB, 16 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 2.5 kB |
| Number of PWM Units | 1 |
| ADC Channels | 8 |
| Typical Operating Supply Voltage | 1.6 → 5.5 V |
| ADCs | 1(8 x 10 bit) |
| Minimum Operating Temperature | -40 °C |
| Timer Resolution | 16bit |
| Height | 1.4mm |
| Number of LIN Channels | 1 |
| PWM Channels | 10 |
| Width | 7mm |
| Timers | 8 x 16 bit |
| Dimensions | 7 x 7 x 1.4mm |
| Number of I2C Channels | 4 |
| Length | 7mm |
| Pulse Width Modulation | 1(10 x 16 bit) |
| Program Memory Type | Flash, ROM |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Number of UART Channels | 3 |
| Number of Timers | 8 |
| Instruction Set Architecture | CISC |
| ADC Resolution | 10bit |
| PWM Resolution | 16bit |
