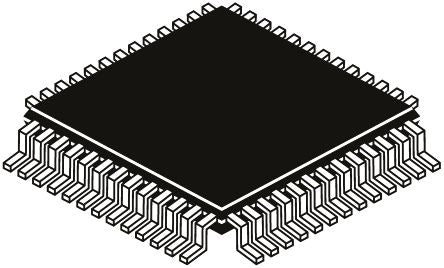

Renesas Electronics R5F10RJCAFA#30, 16bit RL78 Microcontroller, 24MHz, 32 kB Flash, 52-Pin LQFP [R5F10RJCAFA#30]; 828-3559
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | RL78 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 52 |
| Device Core | RL78 |
| Data Bus Width | 16bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 24MHz |
| RAM Size | 1.5 kB |
| ADC Channels | 10 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 1.6 → 5.5 V |
| ADCs | 1 (10 x 8 bit/10 x 10 bit) |
| Timer Resolution | 16bit |
| Height | 1.4mm |
| Number of LIN Channels | 1 |
| Width | 10mm |
| Program Memory Type | Flash |
| Dimensions | 10 x 10 x 1.4mm |
| Length | 10mm |
| Maximum Operating Temperature | +85 °C |
| Timers | 1 (8 x 16 bit) |
| Instruction Set Architecture | CISC |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 8 bit, 10 bit |
| Number of I2C Channels | 1 |
| Number of Timers | 1 |
| Number of UART Channels | 1 |
| Number of ADC Units | 1 |
