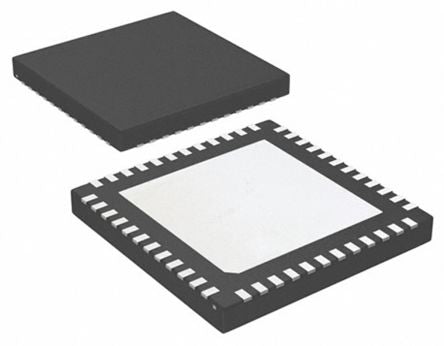

Renesas Electronics R5F11AGGANB#20, 16bit Microcontroller, 32MHz, 128 kB Flash, 48-Pin WQFN [R5F11AGGANB#20]; 179-8490
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | RL78 |
| Package Type | WQFN |
| Mounting Type | Surface Mount |
| Pin Count | 48 |
| Data Bus Width | 16bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 12 kB |
| Number of PWM Units | 1 |
| ADC Channels | 8 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| Width | 6.1mm |
| Data Rate | 1Mbit/s |
| ADC Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 6.1 x 6.1 x 0.8mm |
| Pulse Width Modulation | 1 (7 Channel) |
| Instruction Set Architecture | CISC |
| Number of ADC Units | 1 |
| Program Memory Type | Flash |
| Maximum Operating Temperature | +85 °C |
| Number of UART Channels | 2 |
| Timer Resolution | 12 bit, 16 bit |
| Height | 0.8mm |
| PWM Channels | 7 |
| Length | 6.1mm |
| ADCs | 1 (8 x 10 bit) |
| Number of Timers | 2 |
| Number of I2C Channels | 3 |
