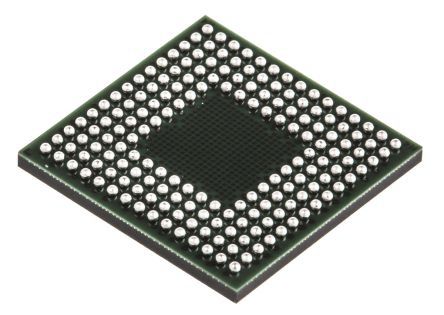

Renesas Electronics R5F5630DCDBG#U0, 32bit RX Microcontroller MCU, 100MHz, 1.5 MB Flash, 176-Pin LFBGA [R5F5630DCDBG#U0]; 126-0556
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | RX630 |
| Package Type | LFBGA |
| Mounting Type | Surface Mount |
| Pin Count | 176 |
| Device Core | RX |
| Data Bus Width | 32bit |
| Program Memory Size | 1.5 MB |
| Maximum Frequency | 100MHz |
| RAM Size | 128 kB |
| USB Channels | 1 |
| ADC Channels | 8, 21 |
| Typical Operating Supply Voltage | 2.7 → 3.6 V |
| Number of Timers | 2 |
| ADCs | 1(21 x 12 bit), 1(8 x 10 bit) |
| Length | 13mm |
| Maximum Operating Temperature | +85 °C |
| Program Memory Type | Flash |
| Number of ADC Units | 2 |
| Instruction Set Architecture | CISC Harvard |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 13 x 13 x 0.95mm |
| Width | 13mm |
| Timer Resolution | 8 bit, 16 bit |
| Height | 0.95mm |
| Timers | 1(18 x 16 bit), 1(8 x 8 bit) |
| ADC Resolution | 10 bit, 12 bit |
