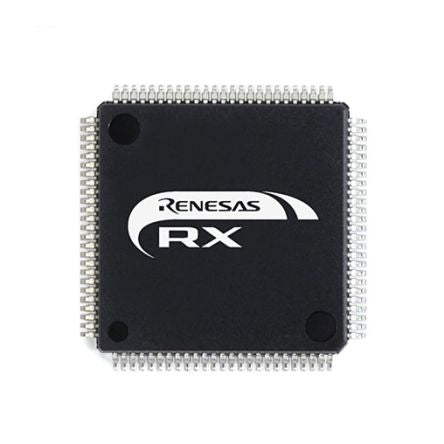

Renesas Electronics R5F566TEADFP#30, 32bit Microcontroller, 160MHz, 512 kB Flash, 100-Pin LFQFP [R5F566TEADFP#30]; 182-6053
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | RX66T |
| Package Type | LFQFP |
| Mounting Type | Surface Mount |
| Pin Count | 100 |
| Device Core | CPU |
| Data Bus Width | 32bit |
| Program Memory Size | 512 kB |
| Maximum Frequency | 160MHz |
| RAM Size | 64 kB |
| Number of PWM Units | 1 |
| ADC Channels | 30 |
| Number of SPI Channels | 8 |
| Typical Operating Supply Voltage | 2.7 → 5.5 V |
| Number of Timers | 3 |
| Number of I2C Channels | 8 |
| Number of UART Channels | 7 |
| Timers | 1 (10 x 32 bit), 1 (13 x 16 bit), 1 (8 x 8 bit) |
| Dimensions | 14.1 x 14.1 x 1.4mm |
| Height | 1.4mm |
| Timer Resolution | 8 bit, 16 bit, 32 bit |
| Pulse Width Modulation | 1 (10 x 32 bit) |
| Program Memory Type | Flash |
| Number of ADC Units | 3 |
| Number of CAN Channels | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 14.1mm |
| ADCs | 1 (14 x 12 bit), 1 (8 x 12 bit) |
| ADC Resolution | 12bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 32bit |
| Instruction Set Architecture | DSP |
| Number of LIN Channels | 1 |
| PWM Channels | 10 |
| Width | 14.1mm |
| Data Rate | 30Mbit/s |
