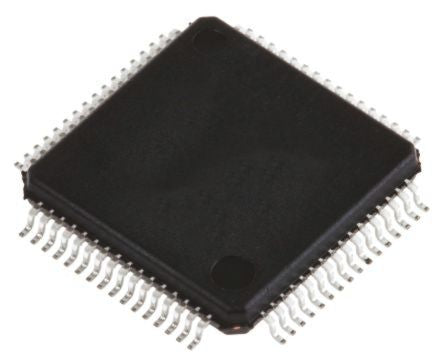

Renesas Electronics R7FS3A6783A01CFM#AA0, 32bit ARM Cortex M4 MCU, 48MHz, 256 kB Flash, 64-Pin LQFP [R7FS3A6783A01CFM#AA0]; 176-9649
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | S3A6 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 256 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 32 kB |
| USB Channels | 1 |
| ADC Channels | 18 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 5.5 (Maximum) V |
| Number of I2C Channels | 2 |
| Number of Timers | 2 |
| ADCs | 1 (18 x 14 bit) |
| Length | 10.1mm |
| Number of UART Channels | 1 |
| Maximum Operating Temperature | +105 °C |
| Number of CAN Channels | 1 |
| Instruction Set Architecture | DSP |
| Dimensions | 10.1 x 10.1 x 1.55mm |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 14bit |
| Width | 10.1mm |
| Timer Resolution | 16 bit, 32 bit |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| Height | 1.55mm |
