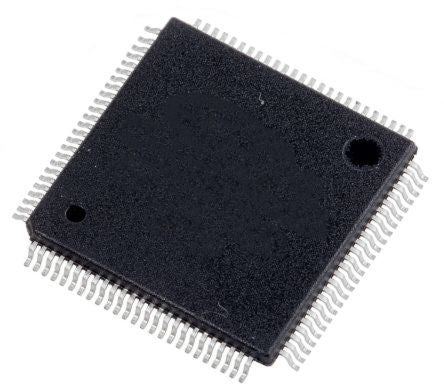

Renesas Electronics R7FS5D97E3A01CFP#AA0, 32bit ARM Cortex M4 MCU, 120MHz, 2 MB Flash, 100-Pin LQFP [R7FS5D97E3A01CFP#AA0]; 176-9661
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | S5D9 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 100 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 2 MB |
| Maximum Frequency | 120MHz |
| RAM Size | 640 kB |
| USB Channels | 2 |
| ADC Channels | 19 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| Instruction Set Architecture | DSP |
| Number of CAN Channels | 2 |
| Number of ADC Units | 1 |
| Program Memory Type | Flash |
| Maximum Operating Temperature | +105 °C |
| Number of UART Channels | 1 |
| Length | 14.1mm |
| Number of Ethernet Channels | 1 |
| ADCs | 1 (19 x 12 bit) |
| Number of Timers | 1 |
| Number of I2C Channels | 2 |
| Timer Resolution | 32bit |
| Height | 1.55mm |
| Width | 14.1mm |
| Maximum Number of Ethernet Channels | 1 |
| ADC Resolution | 12bit |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 14.1 x 14.1 x 1.55mm |
