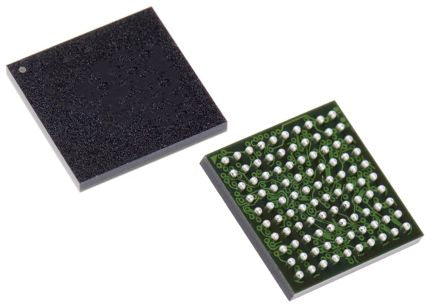

Renesas Electronics R7S721034VCBG#AC0, 8 bit, 16 bit, 32 bit ARM Cortex A9 Microcontroller, 400MHz [R7S721034VCBG#AC0]; 178-0121
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | R7S7 |
| Package Type | BGA |
| Mounting Type | Surface Mount |
| Pin Count | 176 |
| Device Core | ARM Cortex A9 |
| Data Bus Width | 8 bit, 16 bit, 32 bit |
| Program Memory Size | 32 (Data Cache) kB, 32 (Instruction Cache) kB, 128 (TLB128) kB |
| Maximum Frequency | 400MHz |
| RAM Size | 2.048 MB |
| USB Channels | 2 |
| Number of PWM Units | 1 |
| ADC Channels | 8 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| Number of Timers | 2 |
| Width | 8mm |
| ADCs | 1 (8 x 12 bit) |
| Number of ADC Units | 1 |
| Minimum Operating Temperature | -40 °C |
| Pulse Width Modulation | 1 (6 Channel) |
| Number of UART Channels | 5 |
| Number of CAN Channels | 2 |
| ADC Resolution | 12bit |
| Maximum Operating Temperature | +85 °C |
| Data Rate | 133.3 (Image)Mbit/s |
| Timer Resolution | 16 bit, 32 bit |
| Number of Ethernet Channels | 1 |
| Height | 1.1mm |
| Timers | 1 (2 x 32 bit), 1 (5 x 16 bit) |
| Number of I2C Channels | 4 |
| Length | 8mm |
| Dimensions | 8 x 8 x 1.1mm |
| PWM Channels | 6 |
| Maximum Number of Ethernet Channels | 1 |
