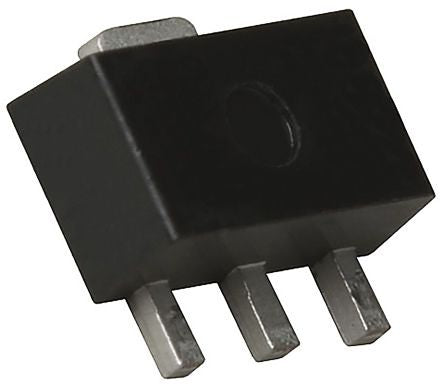

ROHM 2SCR554P5T100 NPN Transistor, 1.5 A, 80 V, 3+Tab-Pin SOT-89 [2SCR554P5T100]; 128-8841
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 1.5 A |
| Maximum Collector Emitter Voltage | 80 V |
| Package Type | SOT-89 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 500 mW |
| Minimum DC Current Gain | 120 |
| Transistor Configuration | Common Emitter |
| Maximum Collector Base Voltage | 80 V |
| Maximum Emitter Base Voltage | 6 V |
| Maximum Operating Frequency | 100 MHz |
| Pin Count | 3+Tab |
| Number of Elements per Chip | 1 |
| Length | 4.7mm |
| Maximum Operating Temperature | +150 °C |
| Height | 1.4mm |
| Maximum Collector Emitter Saturation Voltage | 300 mV |
| Dimensions | 4.7 x 2.7 x 1.4mm |
| Width | 2.7mm |
