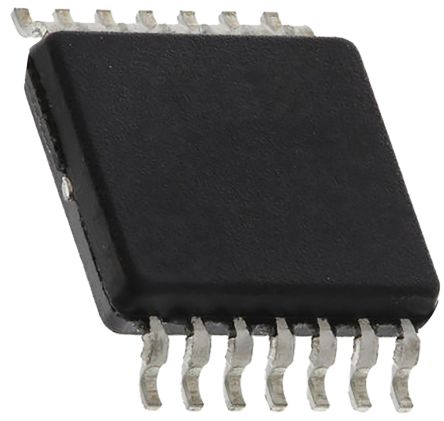

BA10324AFV-E2 ROHM,, Op Amp, 500kHz, 14-Pin SSOP-B [BA10324AFV-E2]; 128-8845
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | General Purpose |
| Mounting Type | Surface Mount |
| Package Type | SSOP-B |
| Power Supply Type | Single |
| Number of Channels per Chip | 4 |
| Pin Count | 14 |
| Typical Gain Bandwidth Product | 500kHz |
| Typical Slew Rate | 0.2V/µs |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Input Offset Current | 50nA |
| Height | 1.05mm |
| Width | 5mm |
| Rail to Rail | No |
| Offset Voltage | 7mV |
| Typical Voltage Gain | 100 dB |
| Minimum Input Voltage | 3 V |
| Input Voltage Range | 3 → 32 V |
| Typical Input Voltage Noise Density | 40nV/√Hz |
| Dimensions | 4 x 5 x 1.05mm |
| Length | 4mm |
| Output Current | 20 (Sink) mA, 35 (Source) mA |
| Maximum Input Voltage | 32 V |
