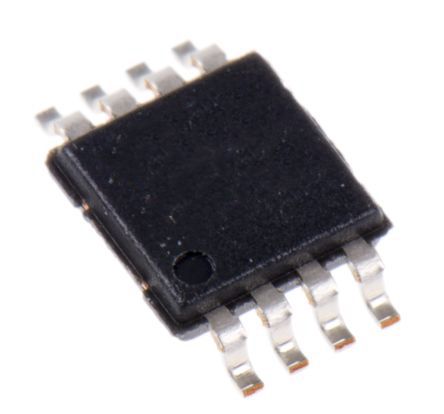

BA2904FVM-TR ROHM,, Op Amp, 500kHz, 36 V, 8-Pin MSOP [BA2904FVM-TR]; 168-2059
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | MSOP |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 36 V |
| Typical Gain Bandwidth Product | 500kHz |
| Output Type | Current |
| Typical Slew Rate | 0.2V/µs |
| Maximum Operating Frequency | 1 kHz |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Offset Voltage | 7mV |
| Typical Voltage Gain | 100 dB |
| Minimum Input Voltage | 3 V |
| Input Voltage Range | 3 → 36 V |
| Typical Input Voltage Noise Density | 40nV/√Hz |
| Dimensions | 2.9 x 2.8 x 0.75mm |
| Length | 2.9mm |
| Output Current | 20 (Sink) mA, 30 (Source) mA |
| Input Offset Current | 200nA |
| Height | 0.75mm |
| Maximum Input Voltage | 36 V |
| Width | 2.8mm |
